Duplex JCAS Operator¶

class DuplexJCASOperator(waveform=None, receive_beamformer=None, detector=None, min_range=0.0, selected_transmit_ports=None, selected_receive_ports=None, carrier_frequency=None, seed=None)[source]¶

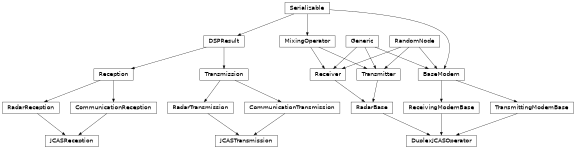

Bases: Generic[CWT], RadarBase[JCASTransmission, JCASReception], TransmittingModemBase[CWT], ReceivingModemBase[CWT]

Base class for duplex joint communication and sensing operators.

Duplex joint communication and sensing operators transmit a modulated waveform while simultaneously deriving a radar cube from the received backscattered power.

Parameters:

waveform (TypeVar(CWT, bound= CommunicationWaveform) | None) – Communication waveform emitted by this operator.
receive_beamformer (ReceiveBeamformer | None) – Beamforming applied during signal reception. If not specified, no beamforming will be applied during reception.
detector (RadarDetector | None) – Detector routine configured to generate point clouds from radar cubes. If not specified, no point cloud will be generated during reception.
min_range (float) – Minimal range considered for the generated radar cubes. Zero by default, but can be adjusted to ignore, for example, self-interference.
selected_transmit_ports (Sequence[int] | None) – Indices of antenna ports selected for transmission from the operated Device's antenna array. If not specified, all available ports will be considered.
selected_receive_ports (Sequence[int] | None) – Indices of antenna ports selected for reception from the operated Device's antenna array. If not specified, all available antenna ports will be considered.
carrier_frequency (float | None) – Central frequency of the mixed signal in radio-frequency transmission band. If not specified, the operated device’s default carrier frequency will be assumed during signal processing.
seed (int | None) – Random seed used to initialize the pseudo-random number generator.

classmethod Deserialize(process)[source]¶

Deserialize an object’s state.

Objects cannot be deserialized directly, instead a Factory must be instructed to carry out the deserialization process.

Parameters:: process (DeserializationProcess) – The current stage of the deserialization process. This object is generated by the Factory and provides an interface to deserialization methods supporting multiple backends.
Return type:: TypeVar(_DJOT, bound= DuplexJCASOperator)
Returns:: The deserialized object.

frame_duration(bandwidth)[source]¶

Duration of a single communication frame in seconds.

Parameters:: bandwidth (float) – Target bandwidth of the communication waveform in Hz.
Return type:: float

Convenience wrapper for the waveform frame_duration method.

serialize(process)[source]¶

Serialize this object’s state.

Objects cannot be serialized directly, instead a Factory must be instructed to carry out the serialization process.

Parameters:: process (SerializationProcess) – The current stage of the serialization process. This object is generated by the Factory and provides an interface to serialization methods supporting multiple backends.
Return type:: None

class JCASTransmission(transmission)[source]¶

Bases: CommunicationTransmission, RadarTransmission

Information generated by transmitting over a joint communication and sensing operator.

Parameters:

signal – Transmitted communication base-band waveform.
frames – Individual transmitted communication frames.

classmethod Deserialize(process)[source]¶

Deserialize an object’s state.

Objects cannot be deserialized directly, instead a Factory must be instructed to carry out the deserialization process.

Parameters:: process (DeserializationProcess) – The current stage of the deserialization process. This object is generated by the Factory and provides an interface to deserialization methods supporting multiple backends.
Return type:: JCASTransmission
Returns:: The deserialized object.

serialize(process)[source]¶

Serialize this object’s state.

Objects cannot be serialized directly, instead a Factory must be instructed to carry out the serialization process.

Parameters:: process (SerializationProcess) – The current stage of the serialization process. This object is generated by the Factory and provides an interface to serialization methods supporting multiple backends.
Return type:: None

class JCASReception(communication, radar)[source]¶

Bases: CommunicationReception, RadarReception

Information generated by receiving over a joint communication and sensing operator.

Parameters:

signal – Received communication base-band waveform.
frames – Individual received communication frames.

classmethod Deserialize(process)[source]¶

Deserialize an object’s state.

Objects cannot be deserialized directly, instead a Factory must be instructed to carry out the deserialization process.

Parameters:: process (DeserializationProcess) – The current stage of the deserialization process. This object is generated by the Factory and provides an interface to deserialization methods supporting multiple backends.
Return type:: JCASReception
Returns:: The deserialized object.

serialize(process)[source]¶

Serialize this object’s state.

Objects cannot be serialized directly, instead a Factory must be instructed to carry out the serialization process.

Parameters:: process (SerializationProcess) – The current stage of the serialization process. This object is generated by the Factory and provides an interface to serialization methods supporting multiple backends.
Return type:: None
