RF Signal Model

class RFSignal(num_streams: int, num_samples: int, sampling_rate: float, carrier_frequencies: ndarray | None = None, noise_powers: ndarray | None = None, delay: float = 0.0, buffer: Buffer | None = None)

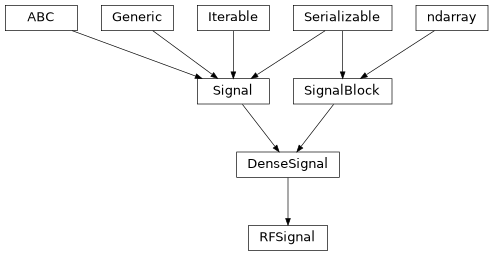

Bases: DenseSignal

An extension of general dense signals for propagation through RF chains.

It allows for diverging carrier frequencies and noise powers for each represented stream.

Parameters:

• num_streams – Number of streams in the signal.

• num_samples – Number of samples per stream.

• sampling_rate – Sampling rate of the signal in Hz.

• carrier_frequencies – Carrier frequencies for each stream in Hz. If specified, must be of size num_streams.

• noise_powers – Noise power for each stream in Watts. If specified, must be of size num_streams.

• delay – Delay of the signal in seconds.

• buffer – Optional buffer to use for the signal data.

classmethod Deserialize(process)

Deserialize an object’s state.

Objects cannot be deserialized directly, instead a Factory must be instructed to carry out the deserialization process.

Parameters:

process (DeserializationProcess) – The current stage of the deserialization process. This object is generated by the Factory and provides an interface to deserialization methods supporting multiple backends.

Return type:

RFSignal

Returns:

The deserialized object.

static FromDense(signal)

Create a new RF signal from a given dense signal.

Parameters:

signal (DenseSignal) – Dense signal to convert.

Return type:

RFSignal

Returns:

The created RF signal.

classmethod FromNDArray(array, sampling_rate, carrier_frequency=None, noise_power=None, delay=0.0)

Create a new RF signal from a given numpy ndarray.

Parameters:

• array (ndarray[tuple[int, int], dtype[complex128]]) – Array containing the signal samples. Must be of shape (num_streams, num_samples).

• sampling_rate (float) – Sampling rate of the signal in Hz.

• carrier_frequency (float | ndarray[tuple[int], dtype[float64]] | None) – Carrier frequencies for each stream in Hz. If specified, must be of size num_streams.

• noise_power (float | ndarray[tuple[int], dtype[float64]] | None) – Noise power for each stream in Watts. If specified, must be of size num_streams.

• delay (float) – Delay of the signal in seconds.

Return type:

RFSignal

Returns:

The created RF signal.

copy(order=None)

Copy the dense signal samples into a new signal model with identical parameters.

Return type:

RFSignal

resample(sampling_rate, aliasing_filter=True)

Resample the modeled signal to a different sampling rate.

Parameters:

• sampling_rate (float) – Sampling rate of the new signal model in Hz.

• aliasing_filter (bool) – Apply an anti-aliasing filter during downsampling. Enabled by default.

Return type:

RFSignal

Returns: The resampled signal model.

Raises:

ValueError – If sampling_rate is smaller or equal to zero.

serialize(process)

Serialize this object’s state.

Objects cannot be serialized directly, instead a Factory must be instructed to carry out the serialization process.

Parameters:

process (SerializationProcess) – The current stage of the serialization process. This object is generated by the Factory and provides an interface to serialization methods supporting multiple backends.

Return type:

None

property carrier_frequencies: ndarray[tuple[int], dtype[float64]]

Carrier frequencies for each stream in Hz.

Raises:

ValueError – If the carrier frequencies array does not match the number of streams.

property noise_powers: ndarray[tuple[int], dtype[float64]]

Noise power for each stream.

Raises:

ValueError – If the noise powers array does not match the number of streams.
